Off Grid 10kW Solar Power System

Description

Off-Grid Solar System

Off-Grid Solar Power System

Off-grid solar systems are not connected to the grid and use batteries to store power.

Benefits of off-grid solar systems

● Avoid Power Outages ● Reduced electricity costs ● Easier Installation ● Easy Alternative for Rural Areas ● Keeping the Environment Clean and Green

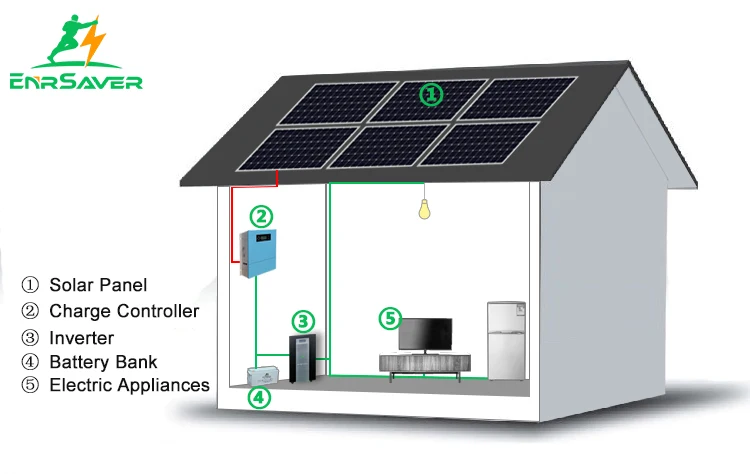

System Configuration

EnrSaver 3KW Off-grid solar power system

If this 3KW conventional configuration does not meet your needs, please contact us to design a more suitable solution for you.

Item	Model	Quantity	Description
1	Solar Panel	16 pcs	320W poly solar panel, 8 pcs 1 string, 2 strings
2	PV combiner	1 piece	8 inputs, 1 output
3	Charge Controller	1 piece	50A/96V
4	IGBT Inverter	1 piece	5KW/96V, 110V/220VAC output optional
5	Gel Battery	8pcs	12V/150AH, Capacity: 28.8kwh
6	Mounting Structure	1 set	Wind load:55m/s,Snow load:1.5kn/m2
7	Cable	1 set	Battery Cables: 14 pcs 16mm²35CM 4 pc 16mm²2M Black PV Cables: 10mm²* 50 m; 4mm²*100M black
8	MC4	10 pairs	PV Connectors
9	Tools Bag	1 set	5 kinds of PV installation tools

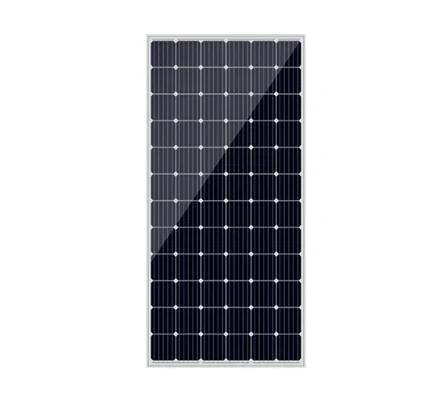

Solar Panel

● Voc: 44.6V, Vmp: 36.6V, Imp: 8.78A, Isc: 9.25A ● Max. System voltage: 1000V ● 10 years products warranty ● 25 years efficiency Warranty ● Highest conversion efficiency of 19% ● Anti-reflective and anti-soiling surface power loss from dirt and dust ● Excellent mechanical load resistance ● PID Resistant,High salt and ammonia resistance

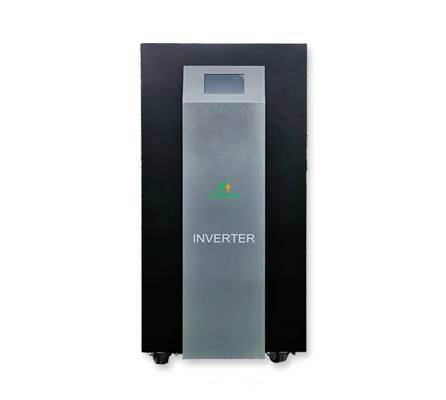

Off-Grid Inverter

● 3 years warranty under proper application ● MicroProcessor Control ● Adapt to City Grid(or generator) ● Parallel Connective ● Auto Self-Diagnosis ● Touch screen Display and Control ● Robust to heavy load ● Long Service Life ● High system Efficiency

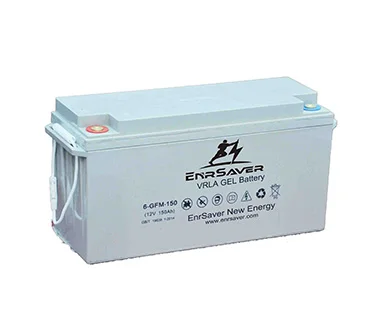

Battery

● 3 years warranty under proper application ● GEL Battery with longer service life ● Robust to large-current discharge ● Easy recover from deep discharge ● Sufficient capacity to provide enough power ● Match our inverters perfectly

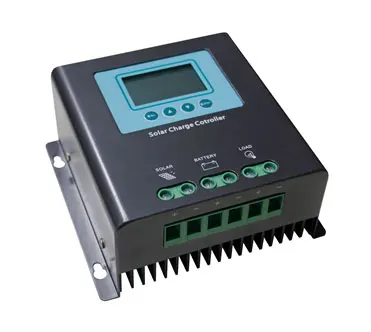

Charge Controller

● Max charge current: 60A ● Max. PV Input Power：3150W ● 10 years products warranty ● 25 years efficiency Warranty ● Highest conversion efficiency of 19% ● Anti-reflective and anti-soiling surface power loss from dirt and dust ● Excellent mechanical load resistance

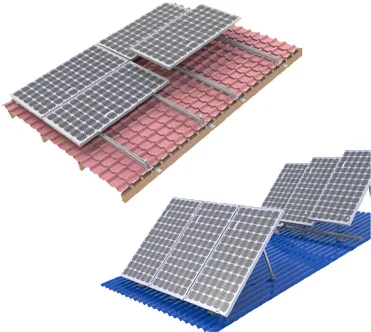

Mounting Structure

● Residential Roof(Pitched Roof) ● Commercial Roof(Flat roof&workshop roof) ● Ground Solar Mounting system ● Vertical wall solar mounting system ● All aluminum structure solar mounting system ● Car parking solar mounting system.

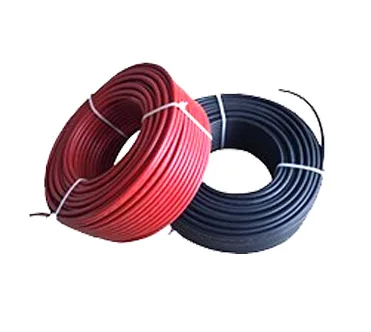

Accessories

● PV Cable ● AC Cable ● DC/AC Switches ● DC/AC Breakers ● Monitoring device ● Tools bag

Packaging

In well-protected wooden box or carton with pallet.

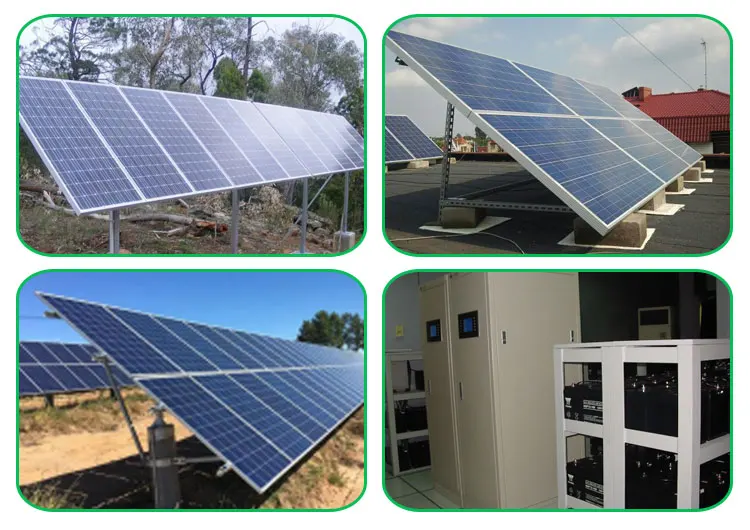

Project Case

We have been working on power management solutions and have a lot of engineering implementation cases.

About EnrSaver

EnrSaver Brand

As the Export branch of Guangdong Chuangdian Technology Co., Ltd, EnrSaver dedicates in bring the advanced technology and cost-efficient products to the markets overseas. Guangdong Chuangdian Technology is also the factory of Guangzhou Zhiguang Electric Co., Ltd, one of the biggest corporation in the research, development, design, manufacture and sale of electrical control equipment, with market value over 5.6 Billion RMB in 2019.

EnrSaver focus on providing the new technology, New products and New Solutions to the users overseas. Serving oversea clients with the advanced technology and sophisticated market skills.
